S6 Uplight Fixture

User Manual



---



1. Introduction

Thank you for purchasing the S6 Uplight Fixture. This professional-grade LED uplight is designed for weddings, events, clubs, stage productions, and architectural applications. Featuring high-power RGBWA+UV LEDs, wireless DMX capability, and a built-in rechargeable battery, the S6 delivers vibrant colors and flexible operation without the need for constant cabling.

Please read this manual carefully before operating to ensure safety and long-lasting performance.



---



2. Safety Instructions

• Electrical & Battery Safety

• Only charge with the included charger.

• Do not expose the battery to heat, water, or fire.

• Do not operate the fixture while charging.

• Charge fully before first use.

• If battery is damaged or swells, discontinue use.

• Operational Safety

• Avoid direct eye exposure to LED beams.

• Keep fixture away from flammable materials.

• Use indoors in dry environments unless specified otherwise.

• Ensure adequate ventilation around the fixture.

• General Warnings

• Do not attempt to disassemble or modify the fixture.

• Allow fixture to cool before handling.

• Unauthorized repairs void warranty.



---



3. Product Features

• Light Source: 6 × 18W RGBWA+UV LEDs (Red, Green, Blue, White, Amber, UV)

• Beam Angle: Wide coverage (25–45° depending on optics)

• Control Modes:

• DMX512 (wired or wireless)

• Master/Slave

• Auto Programs

• Sound Active

• Static Color

• DMX Channels: 6 / 10 channel modes (selectable)

• Battery: Rechargeable lithium-ion (up to 12 hrs runtime, usage dependent)

• Charging Time: 5–6 hours

• Display: LCD menu with 4-button navigation

• Housing: Slim, portable metal housing with adjustable tilt bracket

• Cooling: Fanless design for silent operation



---



4. Package Contents

• 1 × S6 Uplight Fixture

• 1 × Charger / Power Adapter

• 1 × User Manual



---



5. Fixture Overview

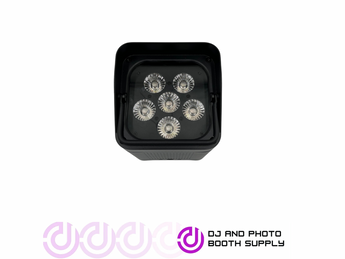

• Front: 6 high-power RGBWA+UV LEDs

• Rear Panel:

• Power switch

• Charging input

• DMX in/out (3-pin XLR)

• Wireless DMX antenna (if equipped)

• LCD display with navigation buttons

• Base: Adjustable tilt stand and mounting holes



---



6. Installation & Mounting

• Place directly on the floor for uplighting walls or structures.

• May be mounted on truss or stands with clamps and safety cables.

• Always secure overhead installations with a safety cable.

• Ensure battery charging port and ventilation remain unobstructed.



---



7. Control & Operation

Menu Navigation

• Buttons: MODE, UP, DOWN, ENTER

• Functions:

• DMX Address (001–512)

• Channel Mode (6ch / 10ch)

• Auto Programs & Speed adjustment

• Sound Mode sensitivity

• Static Colors & Color Mixing

• Wireless DMX On/Off

• Battery status monitor

DMX Channel Functions (10ch mode example)

1. Master Dimmer

2. Red Intensity

3. Green Intensity

4. Blue Intensity

5. White Intensity

6. Amber Intensity

7. UV Intensity

8. Strobe / Shutter

9. Color Macros

10. Program Speed / Effects



---



8. Battery Operation

• Fully charge before first use.

• Typical runtime: 8–12 hrs (depending on brightness and mode).

• Charging time: 5–6 hrs.

• Store battery at ~50% charge if unused for over 3 months.

• Avoid deep discharging to prolong battery life.



---



9. Operation Modes

• DMX Mode: For precise programming and integration with controllers.

• Wireless DMX: Built-in 2.4GHz receiver (if equipped).

• Master/Slave: Link multiple units for synchronized operation.

• Auto Mode: Built-in programs with adjustable speed.

• Sound Mode: Reacts to music via built-in microphone.

• Static Color: Choose single color or mix manually.



---



10. Maintenance

• Clean lens with a soft, lint-free cloth and mild glass cleaner.

• Keep charging ports, housing, and LEDs free of dust.

• Do not use solvents or abrasive cleaners.

• Check hardware and brackets before each use.



---



11. Troubleshooting



---



12. Technical Specifications

• LED Source: 6 × 18W RGBWA+UV LEDs

• Beam Angle: 25–45° (wide wash)

• Control Protocols: DMX512, Wireless DMX, Auto, Sound, Master/Slave

• DMX Channels: 6 / 10 selectable

• Battery: Lithium-ion, rechargeable

• Runtime: Up to 12 hours (mode dependent)

• Charging Time: 5–6 hours

• Power Supply (charging): AC 100–240V, 50/60Hz

• Cooling: Fanless convection

• Dimensions: (approx.) 9 × 6 × 10 in

• Weight: (approx.) 10 lbs



---



13. Warranty

This product includes a 1-year limited warranty covering manufacturing defects. The warranty does not cover misuse, modification, or battery wear due to normal use.



---
